Semiautomatic Coilers

0

Semiautomatic coilers are a low cost alternative to fully automatic equipment. These coilers wind the product as it emerges from the extrusion line automatically following extrusion speed using dancer arm or torque control, and they automatically layer the pipe into the desired coil shape.

Print this View similar products

Semiautomatic Coilers

More Views

Additional Information

Buy now
No
Featured Product
No
Product overview

REDUCED COSTS

  • Only one operator is required to oversee the operation of two or more machines. Where coiler utilization is low semiautomatic equipment produces coils comparable to the fully automated process for less capital investment.

PRODUCTION FLEXIBILITY

  • A wide range of coil head adjustment and interchangeable pipe support plates allow operation across a range of diameters from small diameter tube, hose and conduit up to 6” diameter HDPE pressure pipe.

SEMIAUTOMATIC COILER RANGE

  • Systems within our semiautomatic range are typically used for 1.5” to 6” diameter HDPE, PEX and nylon pressure pipe, composite pipes and pre-insulated pipes. Wheel mounting allows easy movement between lines.

ADD ON TECHNOLOGIES

  • Low Ovality Technology - reduces pipe ovality in PE and PEX pipes
Models/Options
  • Wheel mounting
  • Integrated coil unload device
  • Automatic strapping
broucher Semiautomatic_Coiling_Equip_4pgs.pdf

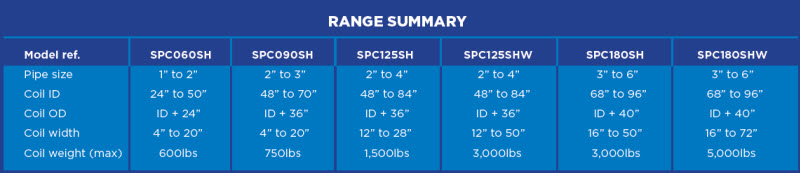

charts 3-4-2017_10-12-28_AM.jpg

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Semiautomatic coilers are a low cost alternative to fully automatic equipment. These coilers wind the product as it emerges from the extrusion line automatically following extrusion speed using dancer arm or torque control, and they automatically layer the pipe into the desired coil shape. Attachment of the product to the reel is manual as is cutting at the end of extrusion.Packaging is applied by the operator who also is required to unload the finished coil. Automatic pipe layering and auto stop at pipe end are standard across the range.

  • Wheel mounting
  • Integrated coil unload device
  • Automatic strapping


REDUCED COSTS

  • Only one operator is required to oversee the operation of two or more machines. Where coiler utilization is low semiautomatic equipment produces coils comparable to the fully automated process for less capital investment.

PRODUCTION FLEXIBILITY

  • A wide range of coil head adjustment and interchangeable pipe support plates allow operation across a range of diameters from small diameter tube, hose and conduit up to 6” diameter HDPE pressure pipe.

SEMIAUTOMATIC COILER RANGE

  • Systems within our semiautomatic range are typically used for 1.5” to 6” diameter HDPE, PEX and nylon pressure pipe, composite pipes and pre-insulated pipes. Wheel mounting allows easy movement between lines.

ADD ON TECHNOLOGIES

  • Low Ovality Technology - reduces pipe ovality in PE and PEX pipes
