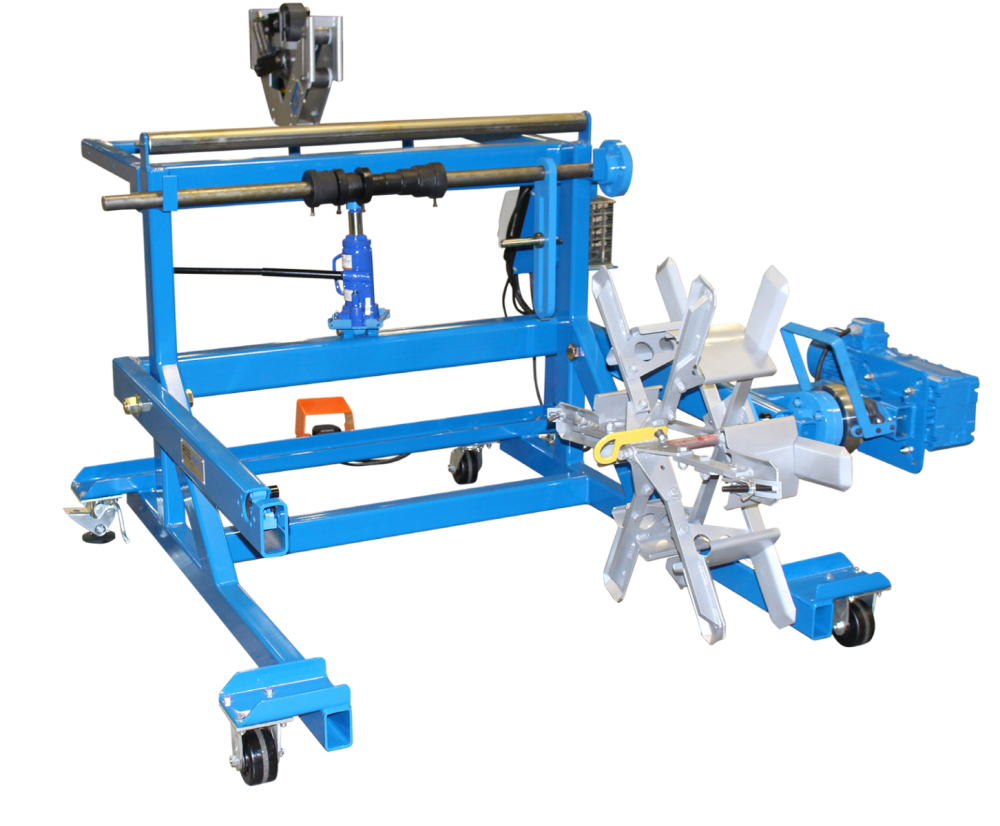

WKT3 Coiling and Spooling Take Up
$15,590.00
Model WKT3-014 Mobile Shafted take-up machine for reels 20” to 54” diameter x up to 34” wide. Maximum lifting capacity of 3,000 lbs. and pull from a 2,500 lb. supply reel.
SKU
WKT3-014
Part Number:
WKT3-014
Shipping by Freight ONLY
Additional Fee for Crating/Pallet/Skid: $400.00
Additional Fee for Crating/Pallet/Skid: $400.00
$15,590.00
Replacement parts for WKT3 Coiling and Spooling Take Up
Product Details
Coiling and Spooling Take Up
WKT3
The WKT Series Spooling and Coiling equipment is perfect for light to moderate duty applications. Take-ups are standard with a 1 3/8” O.D. shaft with bushings for 2”, 21/2” and 3” arbor holes.
Features & Benefits
• Updated AC Drive package provides improved performance over DC drives
• UL and CE Rated – motor/electric
maneuverable!
• Integrated Forward/Reverse standard
• Increased torque
• 0-35 / 0-70 RPM setting can be modified in field!
• Improved Slide Drive
• 1 HP AC Vector Drive, 0-70 RPM, (120 Volt- 1 Phase)
• Forward and Reverse
• Model 1700SP p/n 0207-384 Heavy-duty measurer for material from 1/8” to 2” diameter with Knurled wheels
• Model 5C-6-0033 Collapsible Coiler with for completed coils measuring 5” wide x 20” I.D. x 30” OD
• Coiler adaptor p/n 1034-121
• Manual hydraulic lift jack
• Operator safety footswitch for engaging the drive by depressing the foot pedal
• Drive attached to the frame of the machine
• 1 3/8” diameter reel shaft with bearings
• One set bushing for 2”, 2 ½” and 3” arbor holes to include a step bushing of the same size
• Meter swing arm p/n 0207-919
• Provided with rear swivel casters and floor locks
• Wire roller and push handle
• Safety shaft latch
• Perpendicular wheels
• Painted Blue

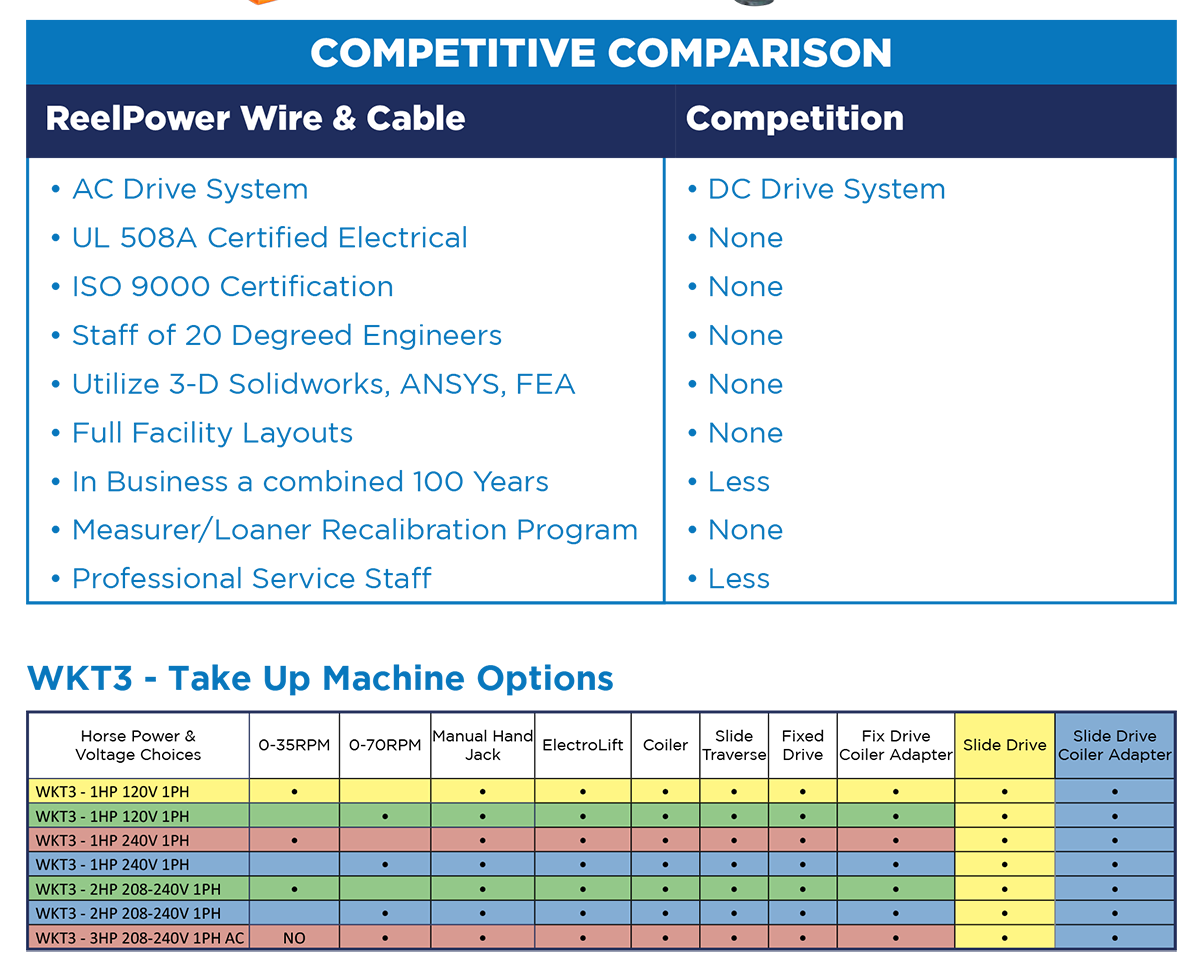

Take-Up Options
• Collapsible Coilers
• Slide Traverse
• 2” and 4” Capacity
• Paralleling Reels
• ElectroLift
• Shaftless & Custom Designs
• Automatic Levelwind - Custom
• Safety Guarding
• 0-35 RPM / 0-70 RPM
Accommodates reels up to 3,000 lb. capacity, between 20” to 54” OD, and up to 34” wide• MODEL 1700SP MEASURER ON METER SWING ARM
• NEW SLIDE DRIVE
• FORWARD/ REVERSE STANDARD
• 5C-6AL - 0012 - ALUMINUM COILER
WKT3
The WKT Series Spooling and Coiling equipment is perfect for light to moderate duty applications. Take-ups are standard with a 1 3/8” O.D. shaft with bushings for 2”, 21/2” and 3” arbor holes.
Features & Benefits
• Updated AC Drive package provides improved performance over DC drives
• UL and CE Rated – motor/electric
maneuverable!
• Integrated Forward/Reverse standard
• Increased torque
• 0-35 / 0-70 RPM setting can be modified in field!
• Improved Slide Drive
• 1 HP AC Vector Drive, 0-70 RPM, (120 Volt- 1 Phase)
• Forward and Reverse
• Model 1700SP p/n 0207-384 Heavy-duty measurer for material from 1/8” to 2” diameter with Knurled wheels
• Model 5C-6-0033 Collapsible Coiler with for completed coils measuring 5” wide x 20” I.D. x 30” OD
• Coiler adaptor p/n 1034-121
• Manual hydraulic lift jack
• Operator safety footswitch for engaging the drive by depressing the foot pedal
• Drive attached to the frame of the machine
• 1 3/8” diameter reel shaft with bearings
• One set bushing for 2”, 2 ½” and 3” arbor holes to include a step bushing of the same size
• Meter swing arm p/n 0207-919
• Provided with rear swivel casters and floor locks
• Wire roller and push handle
• Safety shaft latch
• Perpendicular wheels
• Painted Blue
Take-Up Options
• Collapsible Coilers
• Slide Traverse
• 2” and 4” Capacity
• Paralleling Reels
• ElectroLift
• Shaftless & Custom Designs
• Automatic Levelwind - Custom
• Safety Guarding
• 0-35 RPM / 0-70 RPM
Accommodates reels up to 3,000 lb. capacity, between 20” to 54” OD, and up to 34” wide• MODEL 1700SP MEASURER ON METER SWING ARM
• NEW SLIDE DRIVE
• FORWARD/ REVERSE STANDARD
• 5C-6AL - 0012 - ALUMINUM COILER
