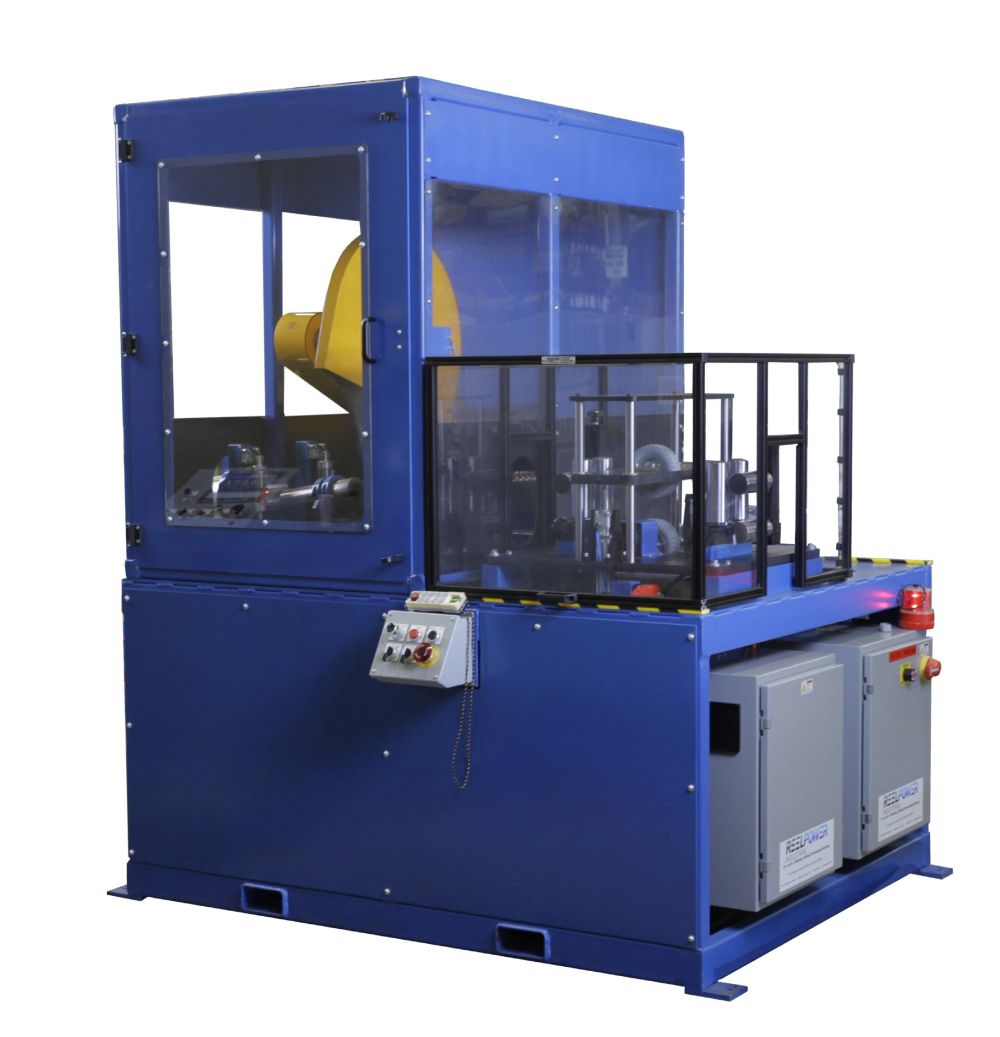

DWMS Measuring & Cutting System (DWMS-10)

Dual wheel, pneumatic tire measuring system with integrated cutting & vac system.

Capacity:

  • .8” thru 5.18” diameter

Features:

  • Dual pneumatic 6” diameter measuring wheels
  • Upper wheel pneumatically controlled open and closed.
  • Lower fixed wheel coupled to bi-directional encoder.
  • Heavy duty all steel welded mainframe stands with bolt down floor securing flanges.
SKU
DWMS-10
Part Number:
DWMS-10

Please call

Features:

  • Dual pneumatic 6” diameter measuring wheels
  • Upper wheel pneumatically controlled open and closed.
  • Lower fixed wheel coupled to bi-directional encoder.
  • Heavy duty all steel welded mainframe stands with bolt down floor securing flanges.
  • Heavy duty four (4) roller box guide, entrance and exit adjustable for .8” thru 5.18” diameter material.
  • Pneumatic filter, regulator and dryer furnished.
  • Bi-directional encoder will be electronically integrated to the TCTU-50 (SP) Coiler take-up’s operator control pedestal and HMI to offer footage count and predetermined stop-to-length programming capabilities.
  • 16” Pneumatically actuated (fine tooth) chop saw.
  • Pneumatic material clamps (both sides of cutting blade) to securely hold hose material during the cutting process.
  • Integrated VAC system to collect hose particles after the cutting process. NOTE: VAC system energizes when saw is signaled to start and also to stop when the saw cycle is complete.
  • Safety guard cover entire saw area with safety inlock switches.
  • Manual cut cycle – Momentary push button which will activate clamps and cycle saw for one (1) cut. NOTE: Safety guard must be closed and coiler must be in the stop mode

Capacity:

  • CUTTING & VAC SYSTEM
  • GUIDE ROLLERS
  • MEASURING SYSTEM
