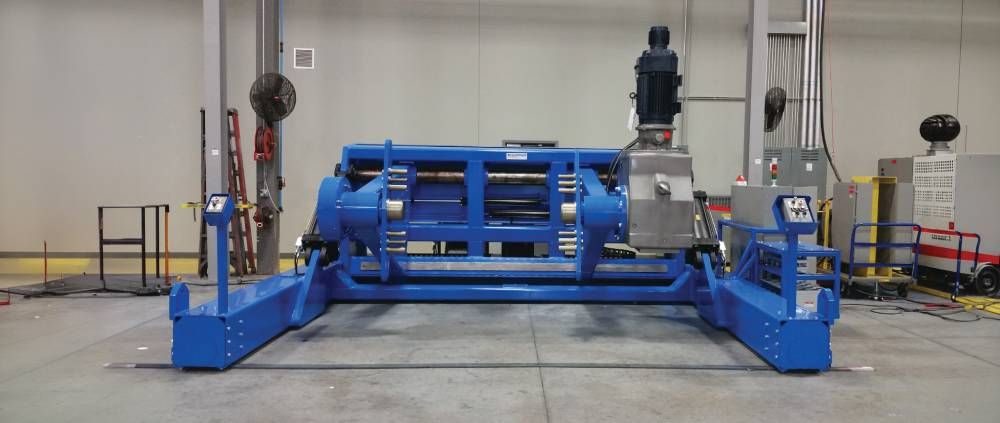

FMT Series FMPT 100 Shaftless Take-Up & Pay-Off Machine Ground traversing, heavy-duty reel handling for large-diameter industrial applications.
Standard Features
Heavy duty construction with bolt-down floor flanges Electric/hydraulic lifting and pintle positioning system
Product Details
Standard Features
Heavy duty construction with bolt-down floor flanges Electric/hydraulic lifting and pintle positioning system Yaskawa Vector Drive with Encoder Feedback Card Zero speed holding & hydraulic self-contained holding brake Braking resistors, Marathon Max Inverter Duty Motor Ground traversing AC Vector Drive, adjustable pitch up to 5” material Front ground track flush to floor, raised rear ground track Self-contained hydraulic dual caliper braking system Operable via local joystick control Dual front mounted pendant loading controls Products Overview
Ground traversing, heavy-duty reel handling for large-diameter industrial applications.
Technical Specifications
50 HP: AC Variable Speed & Torque Control Drive 0-15 RPM: Operating Speed Range 480 VAC: Power Requirements — 3 Phase Sort By : Latest First Oldest First Most Like Most Dislike
