HD-Powered Cable Reel Stand

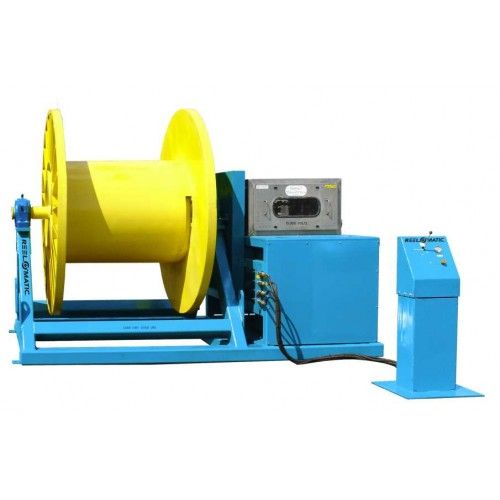

Shown Below is our Model SP-CRS108 Powered Cable Reel Stand for reels 108"Dia x 80" wide x 25,000lbs load capacity. This machine was designed for retracting cords in a Marine Application. It is equipped with a 15,000 Volt Slip Ring Assembly, Self Contained Diesel Engine Powered Unit. It also has a Tension Controlled Drive System.

SKU
HD-POWERED CABLE REEL STAND 1

Please call

Shown Below is our Model SP-CRS108 Powered Cable Reel Stand for reels 108"Dia x 80" wide x 25,000lbs load capacity. This machine was designed for retracting cords in a Marine Application. It is equipped with a 15,000 Volt Slip Ring Assembly, Self Contained Diesel Engine Powered Unit. It also has a Tension Controlled Drive System.

15,000 Volt, 300 Amp slip ring assembly
Includes:

  1. 5 pole (3 conductor with two grounds)
  2. Marine environment package
  3. Inspection window

16 HP Diesel/Hydraulic Variable Speed Reel Drive, 0-15 RPM, (Capable of 150 FPM at a 48” I.D.)
Includes:

  1. NEMA 4X Electrical Controls
  2. Outdoor environment package includes primer, enamel paint, and stainless steel and plated hardware
  3. Forward/Reverse Manual Hydraulic Speed Control
  4. Main System Relief with gauge
  5. Tension Control Reliefs with gauges

INCLUDES:

  1. Heavy duty structural steel frame with lifting eyes and bolt-down flanges
  2. Reel shaft with lifting lugs, dual drive pins, and reel locking collar
  3. Heavy duty reel (RRP open sided construction) with 7 5/8” arbor hole, 96” O.D. x 72” inside traverse, 48” drum with special drum access for cable ties to center shaft. Capable of holding over 4,000 feet of 2.64” diameter SHD-GC Cable.
