HIGH SPEED BOBBIN PAYOUTS

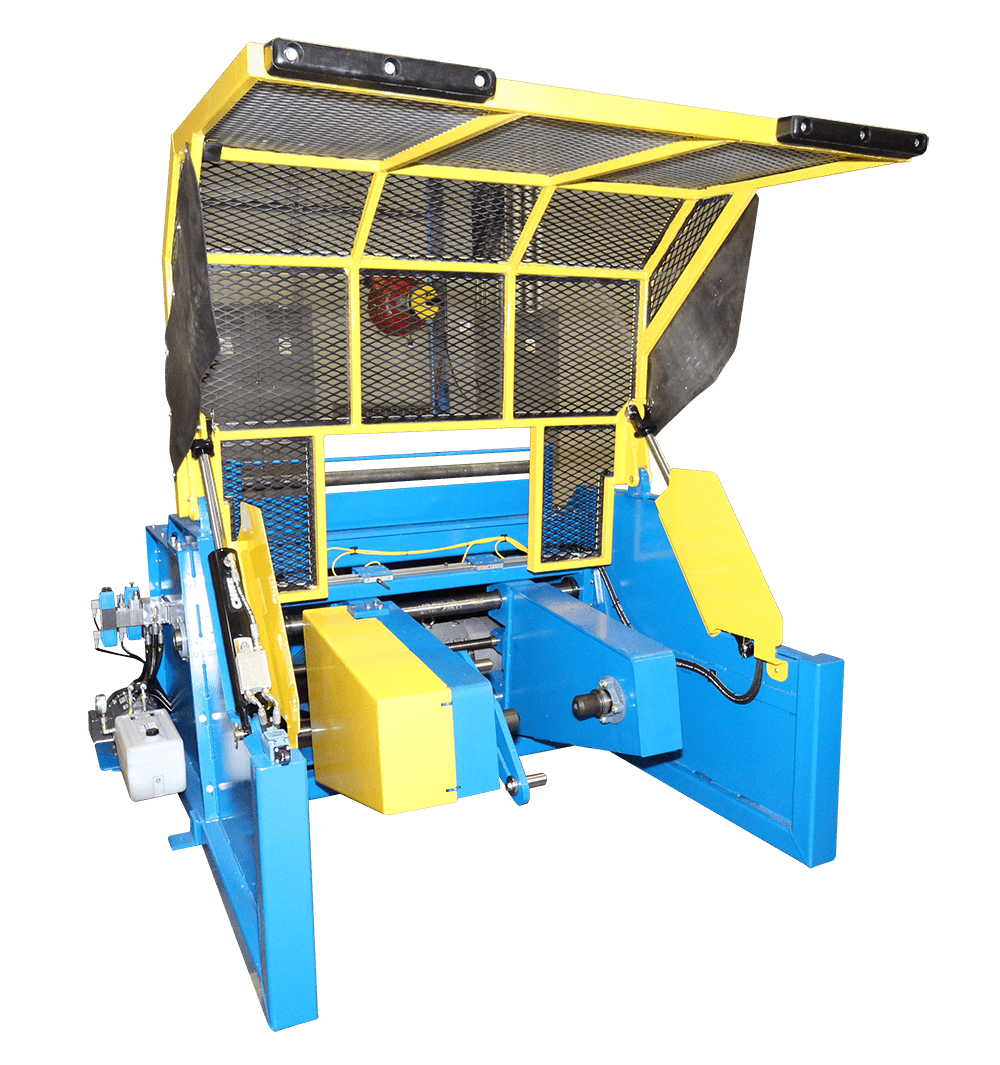

CSP01.2-001 - Compact Shaftless Payout
Speeds up to 1,750 FPM

• Hydraulic Actuated Safety Hood
• Belt Driven Rewind Assist
• Easy Access Rear Maintenance Panels

Includes
• 15 HP Yaskawa AC Vector Variable Speed Control Drive
System, 0-400 RPM. Capable of maintaining 1,750 FPM with a 17” drum diameter.
• Voltage, 480VAC- 3phase.
• Electro lift for reel lifting and lowering.
• Heavy duty steel construction.
• Reel Diameter (Min & Max): 18” to 30” diameter range
• Reel Width (Min & Max): 8” to 20” width range
• Reel Weight (Max): 1,200 lbs.
• Main Controls include:
  o Power On/Off Selector Switch
  o Drive Start/Stop Pushbuttons
  o Local Dancer Trim Potentiometer Dial and Provision for Remote Connections
  o Emergency Stops
• Heavy duty structural steel frame with bolt-down flanges.
• 1 3/8” diameter stub shafts with standard arbor bushings.
• Drive arm with adjustable drive pin.

• CONTROL PANEL
• HARDENED GUIDE ROLLER
• HEAVY DUTY ARMS
