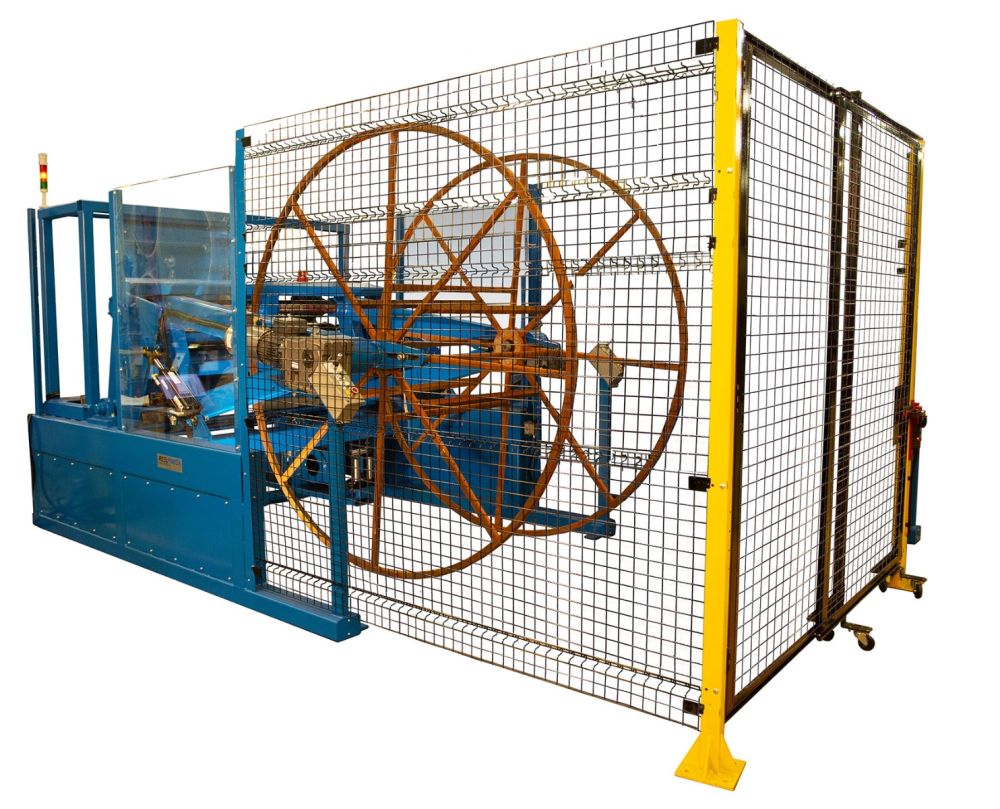

ILFMT5 - IN-LINE SHAFTLESS FLOOR MOUNTED TAKE UP Custom Designed for Plastic Pipe Underwinding
Product Details
Standard Features:
Reel size up to 72” - 120” OD X 12” - 50” wide• 5,000 lbs lift capacity
Dual 3 HP AC vector variable speed and torque drive
0 - 15 RPM / 117 FPM / 30” core, 0 - 15 RPM / 140 FPM / 36” core,0 - 15 RPM / 165 FPM / 42” core
480V, 3 phase
AC vector precision following automatic ball screw levelwind
Hydraulic powered lifting and pintle positioning
2 1/2” diameter stub shaft with tapered core bushings 1 1/4” to 4” diameter
Standard 3” and 4” cone bushings available
Color HMI
Models/Options
Safety cage with safety locking gate
Large drive motors as required
Different colors available
Variety of safety systems customized
Wireless remote controls
Tail winch to pull material into machine
Pneumatic material clamping in traverse tube
Full material breaking in traverse tube
