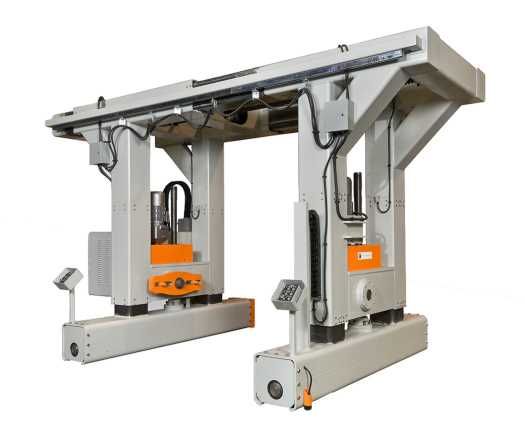

Large Gantry Takeups and Payoffs

Traversing Frame Take-Ups and Payoffs are some of the most advanced on the market today, now with capacities up to 100,000 pounds.

SKU
Large Gantry Takeups and Payoffs1

Please call

Traversing Frame Take-Ups and Payoffs are some of the most advanced on the market today, now with capacities up to 100,000 pounds. These units offer such benefits as: true walk-thru capability and unlimited lateral movement for reel handling. The units traverse the entire reel in front of the line, creating an optimum layer wound package. The telescoping portal design conforms to the size of reel to minimize floor space requirements. Main drive systems are engineered to customers’ specifications and are complemented with operator Touchscreen Interface

Zero Material Fleeting Angle

  • Superior level-wind capabilities.
  • Tandem operation allows for continuous line operation and offers faster and more convenient loading.
  • Minimized line lengths even with large, non-flexible material.
  • Processes round, flat and rectangular products
Superior Controls
  • Standard controls fit all applications of dancer, speed, or torque controls with selectable diameter and line speed compensation.
  • Color touchscreen on take-up and payoff allows complete operator control and maintenance access.
  • Independent load control stations for convenient load access.
Telescoping Frame Conforms to the Actual Reel Size
  • Offers true roll thru capabilities
  • Increased productivity
  • Improved bolt-on labor cone design




Options:

  • Rim Driven Systems
  • Overhead beam design
  • Auto reel loading
  • Zero fleeding angle payoffs
  • Integrated Safty Scanner
