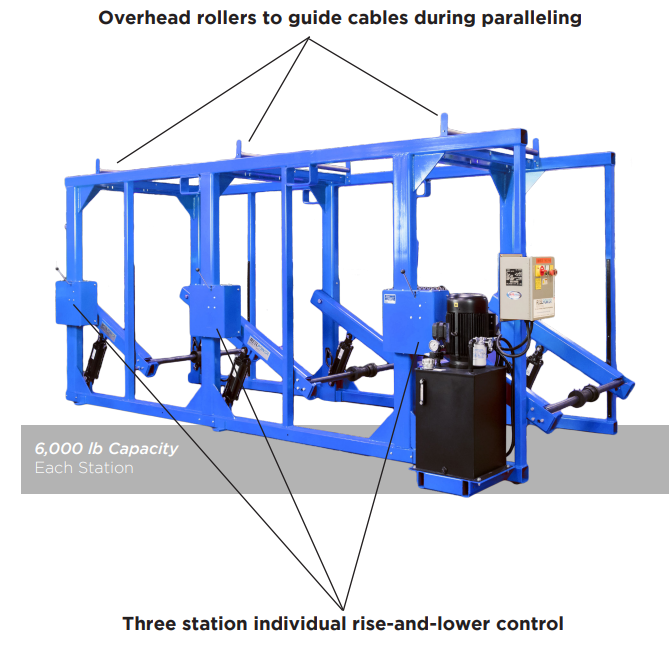

Paralleling Shafted Payoff
Availability: In stock
SPRS6-3 Position Shafted Payoff
Accommodates reels 38” to 72” diameter and up to 45” wide
Product Details
SPRS6-3 Position Shafted Payoff
Accommodates reels 38” to 72” diameter and up to 45” wide
Products Overview
Standard Features:
- Electro-lift to raise and lower the reels by pushbutton with central hydraulic unit.
- Bushing storage
- Three (3) 2” reel shafts with 3” and 4” bushings
- Three (3) 2” reel shafts with 3” and 4” bushings
- Centering 6” fixed guide box attached to the top of frame work instead of rollers previously provided.
- 10” Mechanical disc brakes to help prevent reel over spin and provide tension during payoff process. Adding the brakes will increase overall width slightly by approximately 8” over (ILRSP6-001-01) previous unit.
- Shaft storage brackets
- Elongated shaft pocket with cam rollers
- UL508A Listed
