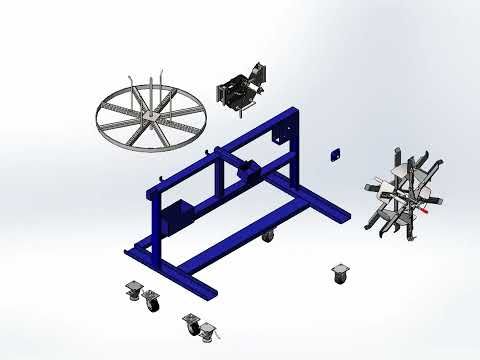

HDPent-004 EXPL

SKU
HDPENT-004-EXPL-grouped
Part Number:
HDPENT-004-EXPL-grouped
Grouped product items
Part NamePriceQty
1 - Replacement 36” Coil Turntable P/N 0200-012*
was $1,566.11 Special Price $1,409.50
2 - Replacement 1700 Measurer P/N 0207-697*
was $2,165.47 Special Price $1,948.92
3 - Replacement Bearing P/N 10405-27*
was $61.96 Special Price $55.76
4 - Replacement Floor lock P/N 12250-02*
was $57.22 Special Price $51.50
5 - Replacement Swivel caster - 4"x 2" Phenolic P/N 10925-01*
was $67.55 Special Price $60.80
6 - Replacement Fixed caster - 4"x 2" Phenolic P/N 10925-36*
was $69.71 Special Price $62.74
7 - Replacement Coiler 20” ID x 30” OD P/N 5C-6-0033*
was $2,065.83 Special Price $1,859.25

Standard Features:

  • 36” Diameter coil turntable with adjustable ID
  • Center post for spool payoff
  • Variable speed control
  • 1 HP SCR Drive system, 120 V 1 PH., 0-70 RPM
  • 1700 Measurer 1/8” to 2” diameter capacity
  • Feet & inch mechanical counter
  • Heavy duty mobile frame with floor locks
  • 2 Swivel wheels for maneuverability
  • Operator safety foot switch
  • 5C-6HD Collapsible coiler 20” ID x 30” OD x 5” wide

Being user-friendly and convenient in nature, Heavy Duty Penthouse is one of our best coiling and spooling machines. It not only includes standard features of Mini Penthouse but also possesses some of the additional options such as huge 36” Diameter CT Coil Turntable with Adjustable ID Pins for coil payout and center post for spool payout, variable speed drives. An Electronic Stop to Length Programmable Counter, Automatic Levelwinds, Integral Automatic Cutters, Plug-in Feature for Easy Change of Coilers & Shafts, Spool Shaft Adapters and Special Size Coilers are all options that are available on this model.

Optional Features:

  • 1, 2, & 3 Horsepower variable speed drives
  • Manual version w/ hand crank
  • Electronic stop-to-length programmable counter
  • Automatic levelwinds
  • Integral automatic cutters
  • Plug-in feature for easy change of coilers & shafts
  • Spool shaft adapters
  • Special size coilers
