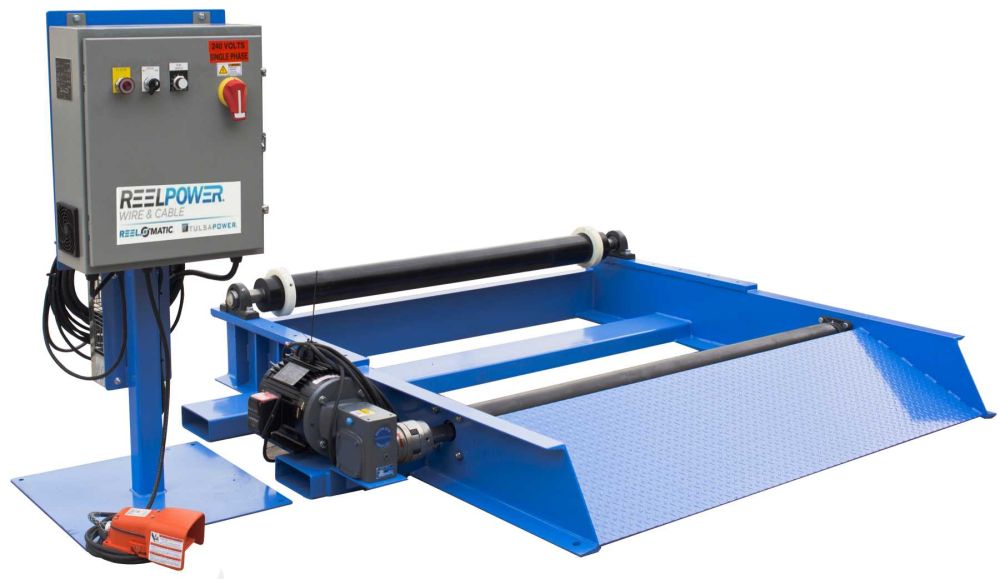

PRR Series: Powered Reel Rollers*

$28,013.33

Reelpower Industrial PRR Series was created for use in extrusion, assembly and inspection processes or where minimum floor space usage is required. The PRR may be easily loaded by utilizing the loading ramp, overhead crane, or with a forklift and is available with options to fit your application.

SKU
PRR10-009-001
Part Number:
PRR10-0009-001
Shipping by Freight ONLY
Additional Fee for Crating/Pallet/Skid: $350.00
$28,013.33

Reelpower Industrial PRR Series was created for use in extrusion, assembly and inspection processes or where minimum floor space usage is required. The PRR may be easily loaded by utilizing the loading ramp, overhead crane, or with a forklift and is available with options to fit your application.

Standard Features

  • Adjustable manually for various reel diameters. Customers must specify 4 reel dia. settings.
  • Bolt Down Tabs
  • Operates in Forward or Reverse
  • Urethane Coated Drive Roller
  • Loading Ramp
  • Pendant Controlled

Standard Capacities

  • PRR1 24” to 60” Dia. x 36” Wide x 1,000 Lb. Load Capacity. 1 HP SCR Variable Speed Drive, 120V 1 Ph., 0-450 RFPM.
  • PRR10 96” Dia. x 60” Wide x 10,000 Lb. Load Capacity. 2HP SCR Variable Speed Drive, 230V 1 Ph., 0-150 RFPM.
  • PRR20 120” Dia. x 72” Wide x 20,000 Lb. Load Capacity. 3HP SCR Variable Speed Drive, 230V 1 Ph., 0-150 RFPM.
