Name: RD15-004 Replacement Parts
Brand: Reel Power Industrial
SKU: RD15-004-Replacement-Parts
Availability: InStock

We use cookies to make your experience better. To comply with the new e-Privacy directive, we need to ask for your consent to set the cookies. Learn more.

Product Details

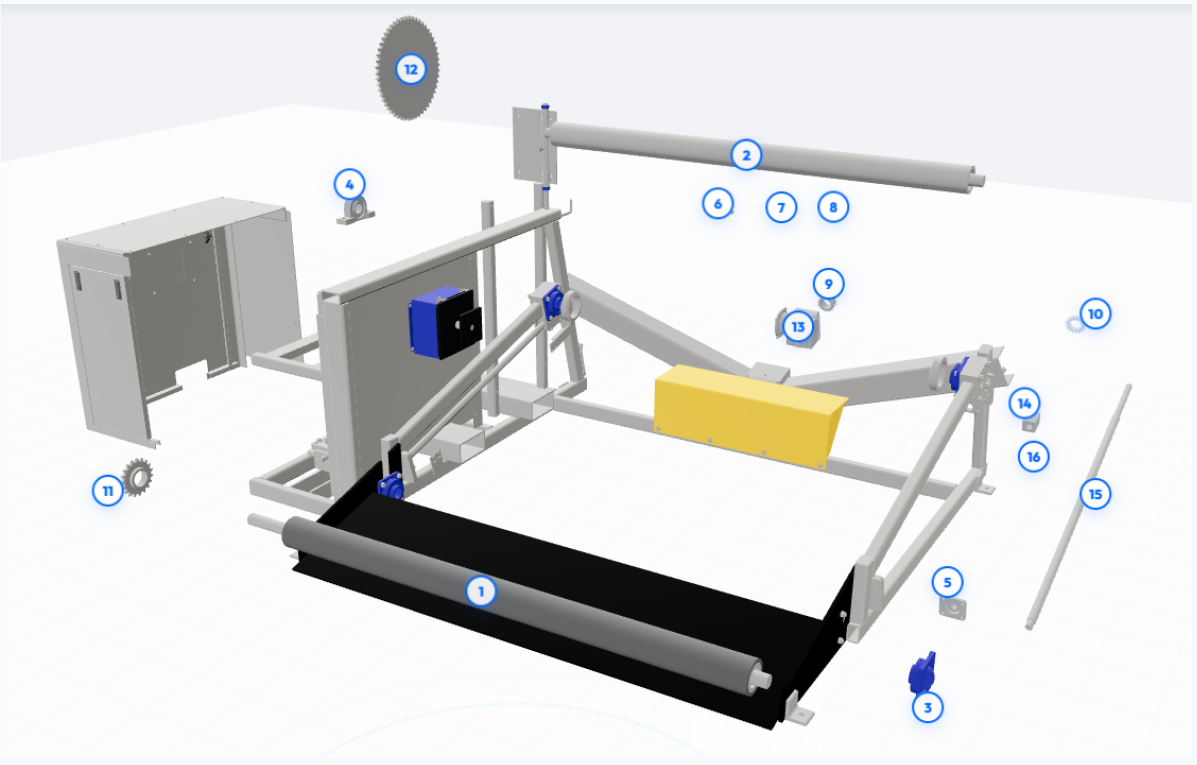

Explore the RD15-004 replacement parts exploded view to identify individual components and find the parts you need.

Sort By :

No question found!

Part Name	Price	Qty
1 - ROLLER, DRIVE RD15/10W 0100-200 72" WIDE REEL P/N 0100-200*	$3,399.99
2 - Idler Roller P/N 0100-235*	$2,070.02
3 - BEARING, UCF 210-31 1-15/16" 4-BOLT SQ FL SET SCR P/N 10405-09*	$111.55
4 - Pillow Block Bearing P/N 10405-388*	$131.86
5 - 4-Bolt Flange Bearing P/N 10405-409*	$233.58
6 - 50 Chain P/N 11010-04*	$67.57
7 - CHAIN, 50-1-CL 50-1CONNECTING P/N 11010-76*	$2.44
8 - CHAIN, 50-1-OL 50-1 OFFSET LINK P/N 11010-77*	$4.88
9 - Sprocket P/N 15775-358*	$247.69
10 - SPROCKET, 50BTB17H P/N 15775-400*	$95.15
11 - SPROCKET, 80BTB19H FITS 2012 HUB 19 TOOTH 80 PITCH P/N 15775-428*	$229.44
12 - SPROCKET, 80BTB54-2517 80 PITCH, 54 TOOTH, 2517 HUB P/N 15775-752*	$604.98
13 - REDUCER, HF718L-5-B7-HP16 5 1 RATIO HOLLOW SHAFT P/N 14950-384*	$1,197.54
14 - Brass Ejection nut for Reel Power RD5 and RDS10 P/N 2102-352*	$449.99
15 - EJECTION SCREW, 1 1/4"-5 ACME RD10 P/N 100071198*	$973.49
16 - Grease Zerk P/N 12220-279*	Please call	Request for Quote

RD15-004 Replacement Parts
