Product Details

Standard Features:

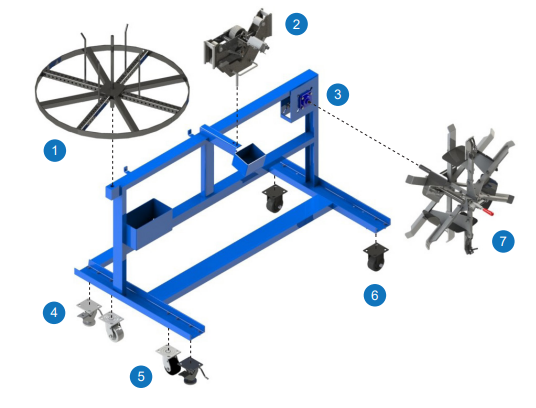

36” Diameter coil turntable with adjustable ID
Center post for spool payoff
Variable speed control
1 HP SCR Drive system, 120 V 1 PH., 0-70 RPM
1700 Measurer 1/8” to 2” diameter capacity
Feet & inch mechanical counter
Heavy duty mobile frame with floor locks
2 Swivel wheels for maneuverability
Operator safety foot switch
5C-6HD Collapsible coiler 20” ID x 30” OD x 5” wide

Products Overview

Being user-friendly and convenient in nature, Heavy Duty Penthouse is one of our best coiling and spooling machines. It not only includes standard features of Mini Penthouse but also possesses some of the additional options such as huge 36” Diameter CT Coil Turntable with Adjustable ID Pins for coil payout and center post for spool payout, variable speed drives. An Electronic Stop to Length Programmable Counter, Automatic Levelwinds, Integral Automatic Cutters, Plug-in Feature for Easy Change of Coilers & Shafts, Spool Shaft Adapters and Special Size Coilers are all options that are available on this model.

Models/Options

Optional Features:
