Getting the exact length right, every single time, is one of the most basic requirements in wire and cable length measurement, yet it's also one of the easiest things to get wrong without the right equipment. Reel Power Industrial builds a full line of material measuring meters used to track material length during coiling and reeling operations, covering wire ropes, cable, rope, wire, pultrusion, conduit, and hose. The lineup ranges from compact 25-pound bench units built for fine wire to heavy-duty pivot-arm systems rated for 6" diameter cable and wire rope, so manufacturers can match the measurer to the material instead of forcing one machine to do a job it wasn't built for.
Whether you're running a single mechanical wire length counter on a small payoff or integrating a PLC-driven stop-to-length system into a full production line, the right cable measuring meter is on this list. Reel Power also backs its equipment with a dedicated Measurers Selection Tool and an in-house recalibration and loaner program, so accuracy doesn't fade as the equipment ages.
Why Accurate Measurement Matters?
Length accuracy touches nearly every part of the wire and cable production process, from the initial extrusion and manufacturing run through respooling, cutting to length, and final packaging. When a length measuring equipment drifts even slightly out of calibration, the effects compound quickly. A cable order that's cut a few feet short means an installer runs out mid-job and calls back with a complaint. An order that's cut too long wastes raw material on every single spool, and at scale that waste adds up to real money.
This is why Reel Power builds accuracy directly into the mechanical design of its measurers rather than treating it as an add-on feature. The 1700 series pinch-roll measurers hold accuracy within .5% through a spring tension design that keeps constant pressure on the material as it feeds through, and the compact 3101 and 3102 wheel measurers hold +/- 1/2% accuracy across their rated diameter ranges. The Model RC-10 takes this further, holding +/- 1/2 of 1% accuracy at line speeds up to 2,000 feet per minute, which matters for high-throughput operations where a slower or less rigid measuring wheel would start to skip or slip.
Because measuring wheels and counters are mechanical components, they wear over time, and a worn wheel or a loose spring can throw off readings without any obvious warning sign on the display. That's the reason Reel Power offers certified calibration test cables in fixed lengths from 50 feet up to 1,000 feet and 50 meters up to 100 meters. Running one of these certified cables through a wire length measuring device periodically confirms the unit is still reading true, catching drift before it turns into a shipment of miscut cable. Reel Power's recalibration and loaner service extends the useful life of a cable length meter industrial installations depend on, which means a manufacturer doesn't have to take a measuring station offline for an extended period just to get it re-certified.
What Are the Types of Wire and Cable Length Counters?
The types of cable and wire length measuring meters are listed below:
Compact Wheel Measurers
For smaller-diameter wire and cable, the 3101 measurer handles material from 1/8" to 1" diameter at +/- 1/2% accuracy, and the 3101 and 3102 steps up to 3/16" to 2" diameter at the same accuracy rating. Both use a feet-and-inch counter that resets to zero with a simple turn of the knob, giving operators a reliable footage counter for wire that speeds up changeovers between runs. The 3100M with urethane wheels goes even finer, accommodating material from 1/64" (.4mm) up to 7/8" (22mm), making it a common choice as a fine wire and cordage measurer for small cordage. All three share the same core mechanism: two measuring wheels running against a spring-loaded floating idler arm, which keeps consistent pressure on the material regardless of small variations in diameter.

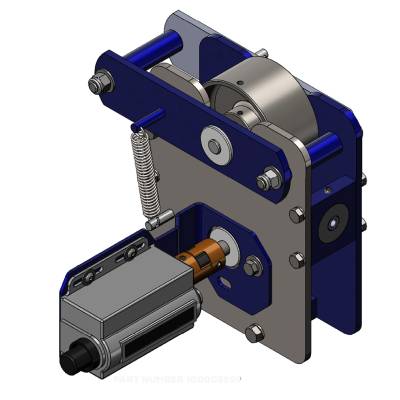

RC-10 High-Speed Measuring System
The RC-10 is built specifically for higher line speeds, rated for material from 1/8" OD up to 1" OD and holding +/- 1/2 of 1% accuracy at speeds up to 2,000 feet per minute. It uses two machined steel measuring wheels riding on two steel shafts supported by four bearings, a combination designed to keep the wheels stable at speed instead of bouncing or chattering. The unit ships in a heavy steel plate housing with hardened entrance and exit guide bushings to protect the material path, and it's available as either a polyurethane-surfaced or knurled wheel cable counter depending on whether the application calls for more grip or less marking on the material surface. At 25 pounds, it's light enough to mount directly onto existing line equipment without requiring a separate stand.

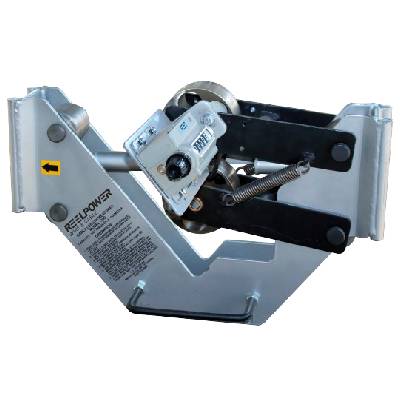

1700 and 1704 Series Pinch-Roll Measurers

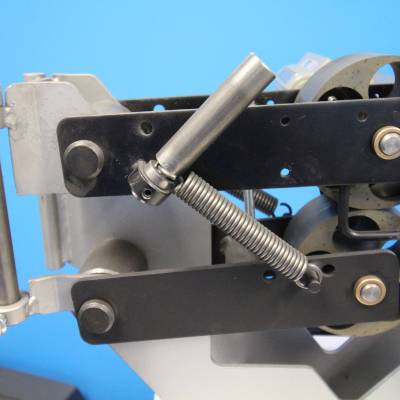

The 1700 series, including the Model 1700SL side-load version, uses a spring tension pinch roll design that maintains constant pressure on the material throughout the measuring cycle, holding accuracy within .5%. These units mount onto most existing cable machinery or stands using a 5/8" diameter mounting pin, and they can be configured with an electronic counter with programmable presets and relay outputs, a Veeder Root counter wire measurer setup (available in foot/inch or metric versions for both right-hand pay-out and left-hand take-up configurations), a remote read-out desk kit and stand, integral cutters, or a left-hand/right-hand side-load feature depending on how material feeds through the line. The larger 1704 series shares this same pinch-roll design and wheel/counter option set but is built for a larger material range, and Reel Power's standard meter stand, sized at 32" x 32" with a telescoping height from 30.25" to 49", fits both series.
Digital Measurers and Programmable Stop-to-Length Systems
Rather than being a separate model, "ESTL" on Reel Power's spec sheets refers to the Electronic Pre-Determined Stop-To-Length Counter, an option available across the RC-10, 1700, 1704, and 1706 platforms. Adding ESTL turns any of these units into an automated wire length measuring device that lets an operator set a target length in advance and have the line automatically stop or trigger a cut once that length passes through, removing the need to watch a mechanical counter and cut by hand. On the electronics side, Reel Power's standard encoder for the 3100M, 1700, 1704, LT200, and LT400 measurers is factory-programmed at 100 pulses per revolution with HTL output, giving these models a consistent digital signal that integrates cleanly with PLCs, HMIs, and other line controls. This means a manufacturer can start with a basic mechanical counter and later upgrade to full digital, stop-to-length control on the same physical measuring wheel assembly, without replacing the whole unit.

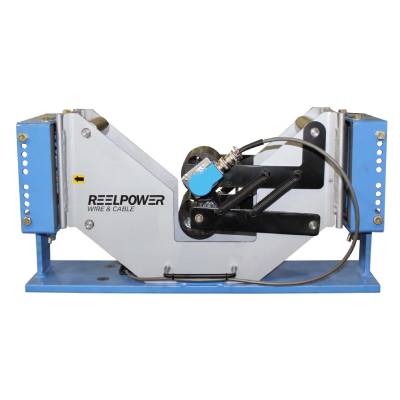

Large-Diameter Cable Measurers
For heavy cable and wire rope, the Model 1706 measures flexible material from 1/2" to 6" in diameter at .5% +/- accuracy. Pivot arms and springs keep the measuring roller clamped tightly against the cable, and the heavy top and bottom rollers make it easier to pull material off the pay-off in the first place, which matters when the material itself is heavy and difficult to move by hand. The 1706 covers wire rope, large power cable, hose, tubing, conduit, fiber optic cable, and rubber or plastic hose, and it's available with side loading, remote read-out, metric counters, integral cutters, a knurled wheel cable counter or urethane-coated wheel option, ESTL, digital read-out, two-level counters, or a wire guide mount. The similarly rated Model 1704 covers the same general large-diameter range. For the highest-volume large-diameter work, the DWMS-10 combines dual pneumatic 6" diameter wheels with an integrated cutting and vacuum system, covering .8" through 5.18" diameter material in a single measure-and-cut pass.
Track-Style Measurers
Reel Power also offers track-style measuring systems for products up to 4" in diameter, an option worth considering for softer or more delicate materials where a pinch-roll wheel design could deform or mark the surface as it passes through.
If you're unsure which range your application falls into, the Measurers Selection Tool can help narrow it down, or you can request a Fast Quote Specifications Form.
Common Applications for Wire and Cable Measurers
Accurate wire and cable length measurement is a requirement rather than a nice-to-have across a wide range of industries. Reel Power's measurers see regular use in:
Wire and Cable Manufacturing
Manufacturers use measurers directly on the production line to verify output as it's made, catching length errors before material ever leaves the plant.
Distribution and Respooling
Distributors and value-added resellers rely on cable measuring meters during respooling to confirm exactly what's being repackaged and shipped, so the length on the label always matches what's actually on the reel.
Electrical Distribution and Utilities
These operations depend on precise counts when cutting large-diameter cable and wire rope to job-specific lengths. Running short on a job site means a costly delay waiting for more material, which makes accuracy at this stage especially important.
Telecommunications and Fiber Optic Installation

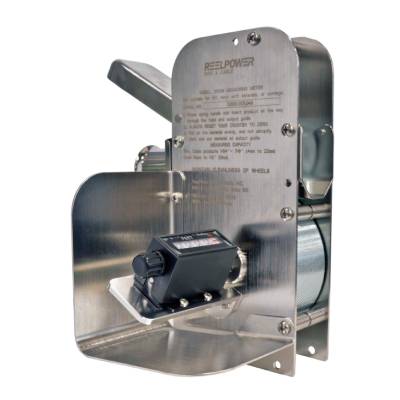

This work needs the same precision but at the smaller end of the diameter range, where compact units like the 3100M and 3101/3102 measurers are better suited than heavier equipment built for large cable.
Industrial Automation
Automated production lines use measurers as part of integrated cutting and handling systems, where consistent length data feeds directly into line controls.
Aerospace and Defense
These applications demand tight tolerances, making reliable, repeatable measurement essential for components and cable assemblies used in critical systems.
Renewable Energy
Wind, solar, and other renewable energy projects require accurate cable lengths for installations that are often large in scale and costly to redo.
Construction and Infrastructure Projects
These projects depend on measured lengths of hose, tubing, conduit, and pultrusion, where a controlled cut length keeps the job on schedule and on budget.
Across every one of these industries, an accurate count from a dependable cable footage meter protects both product quality and inventory accuracy, since a business can't manage stock levels correctly if the recorded length on a spool doesn't match what's actually on it.
Benefits of Wire and Cable Measuring Equipment
Accurate Length Measurement
Precise counting, whether from a mechanical wheel or a digital encoder, helps operators hit exact customer specifications and avoid the two most common and costly mistakes: shipping too little material or wasting good material by cutting too much.
Improved Production Efficiency
Real-time length feedback, especially with ESTL-equipped models, lets the line stop or cut automatically instead of requiring an operator to watch a counter and react manually. This shortens changeover time between orders and reduces the labor needed per run.
Reduced Material Waste
A measurer holding .5% or +/- 1/2% accuracy keeps overages small and consistent instead of large and unpredictable, which means more usable length comes out of every reel of raw material purchased.
Consistent Quality Control
Repeatable measurement, verified periodically with a certified calibration test cable, keeps every order within the tolerances customers expect and gives a manufacturer documented proof of accuracy if a customer ever disputes a shipment.
Stronger Customer Relationships
Shipping the correct length on the first attempt, every time, builds trust with customers and cuts down on the returns, credits, and reshipments that come from length disputes.
Lower Long-Term Equipment Costs
Because Reel Power measurers are built around a serviceable wheel-and-counter or wheel-and-encoder design, worn wheels, springs, and counters can be replaced individually rather than requiring a full unit replacement, and the recalibration program extends the working life of length measuring equipment already in the field.
How to Choose the Right Wire and Cable Measurer for Your Application?
Picking the right measurer starts with matching the equipment to the material and the line, not the other way around. A few factors drive that decision directly:
Material diameter

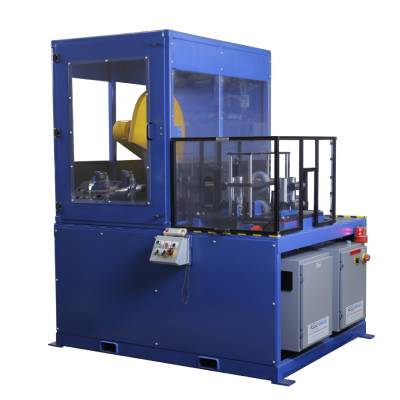

Small wire in the 1/64" to 1" range points toward the 3100M, 3101, 3102, or RC-10, while large-diameter cable and wire rope from 1/2" up to 6" calls for the 1704, 1706, or DWMS-10.
Required accuracy and line speed
Standard applications run comfortably at .5% to +/- 1/2% accuracy, but high-speed lines running up to 2,000 feet per minute should look specifically at the RC-10, which is built and rated for that speed.
Manual vs. automated control
A simple mechanical foot-and-inch counter with a reset knob is often enough for lower-volume or manually operated lines, while higher-volume operations benefit from the ESTL option or a full digital encoder setup that can trigger automatic stops and cuts.
Integration with existing equipment
Most Reel Power measurers mount directly onto existing cable machinery or stands using a standard mounting pin, but side-load configurations (available on the 1700SL and 1704SL) matter when material feeds from a specific direction that a standard in-line unit can't accommodate.
Environmental and material handling needs
Softer or more delicate materials may do better on a track-style measurer rather than a pinch-roll wheel design, since the wheel design can mark or deform certain surfaces.
Counter and readout format
Feet/inch or metric counters, including Veeder Root counter options on the 1700 and 1704 series, are available across nearly every model, so this comes down to which unit of measure a given customer base or region expects.
For anyone who isn't sure which combination fits their line, Reel Power's Measurers Selection Tool walks through these factors interactively, and the Fast Quote Specifications Form routes the details directly to the Reel Power team for a tailored recommendation.
Reel Power Measuring Solutions
From the compact, 25-pound RC-10 up through the heavy-duty 1706 and DWMS-10 systems, Reel Power Industrial builds material measuring meters for nearly every wire, cable, and flexible-material application. Options like ESTL stop-to-length counters, metric readouts, integral cutters, and a standing recalibration service let manufacturers configure a cable length meter industrial lines can rely on today and adapt as production volume or automation needs grow, without starting over with a new platform.
Frequently Asked Questions About Wire and Cable Length Measuring Meters
How accurate are Reel Power's cable and wire measurers?
Accuracy varies by model, but most units hold within .5% to +/- 1/2%. The RC-10, for example, holds +/- 1/2 of 1% accuracy even at line speeds up to 2,000 feet per minute.
Can these measurers be integrated into existing production lines?
Yes. Most models mount directly onto existing cable machinery or stands using a standard mounting pin, and models with ESTL or digital encoder options can tie into PLCs and automated cut-to-length systems.
What is ESTL, and do I need it?
ESTL stands for Electronic Pre-Determined Stop-To-Length Counter, an option available on several Reel Power models that automatically stops the line or triggers a cut once a preset length is reached. It's worth considering for higher-volume operations where manually watching a counter and cutting by hand slows down production.
What materials can be measured?
Reel Power measurers are used for wire, cable, rope, wire rope, hose, tubing, conduit, fiber optic cable, and other flexible materials, across a size range from 1/64" up to 6" in diameter depending on the model.
How do I know if my measurer is still reading accurately?

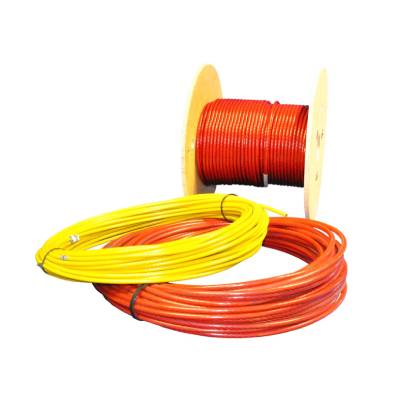

Reel Power sells certified calibration test cables in set lengths from 50 feet to 1,000 feet and 50 meters to 100 meters. Running one through the measurer periodically confirms the reading matches the certified length, catching any drift before it affects a shipment.
Does Reel Power offer service for measurers already in use?
Yes. Reel Power provides recalibration and loaner service to keep measurers accurate and extend their working life, so a unit doesn't need to be taken permanently offline for re-certification.
What's the difference between the 1700 series and the 1706?
The 1700 series is a pinch-roll design rated for a broader general range of material, while the 1706 is purpose-built for heavy and large-diameter cable and wire rope from 1/2" to 6" in diameter, using pivot arms and springs to keep the roller clamped tightly against heavier material.
